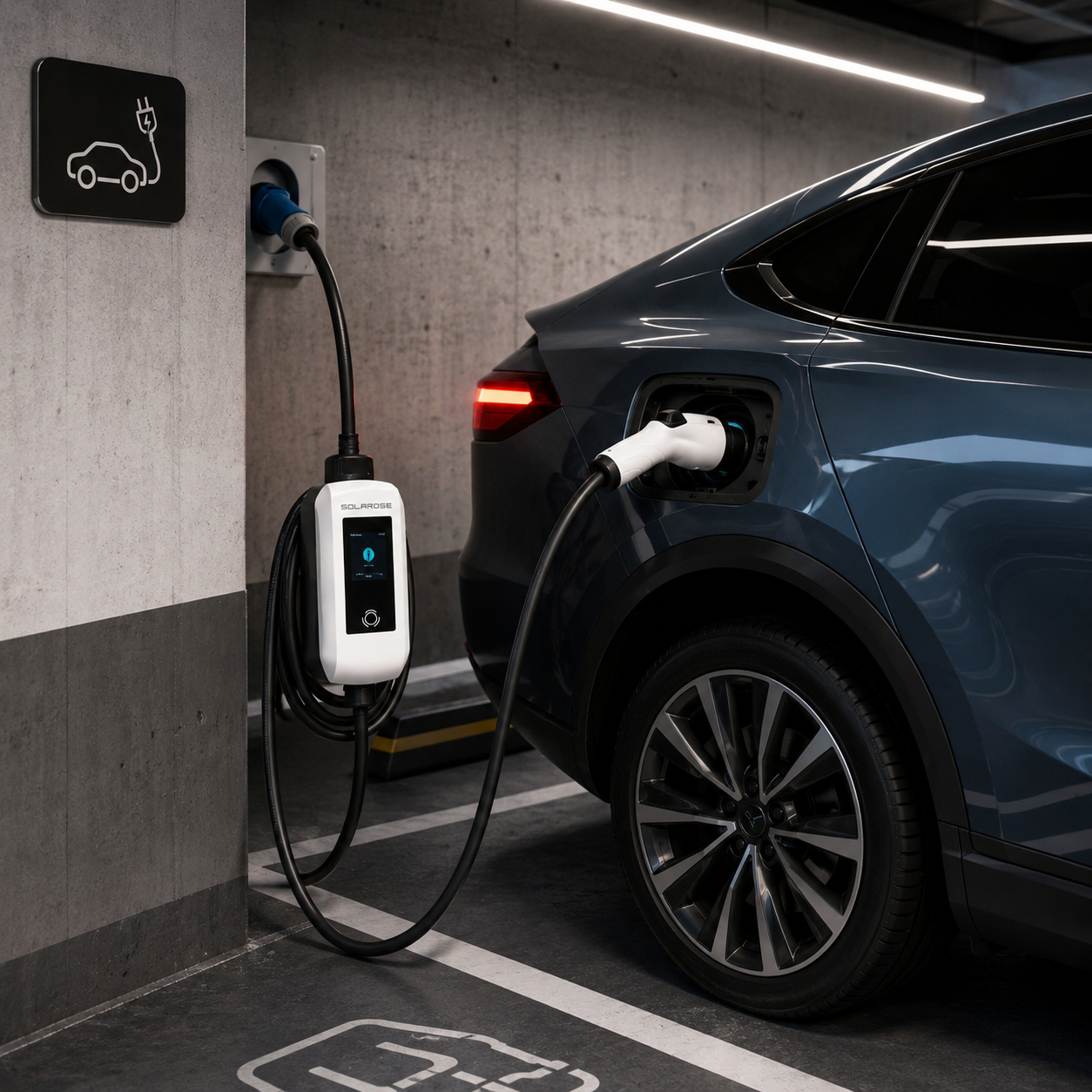

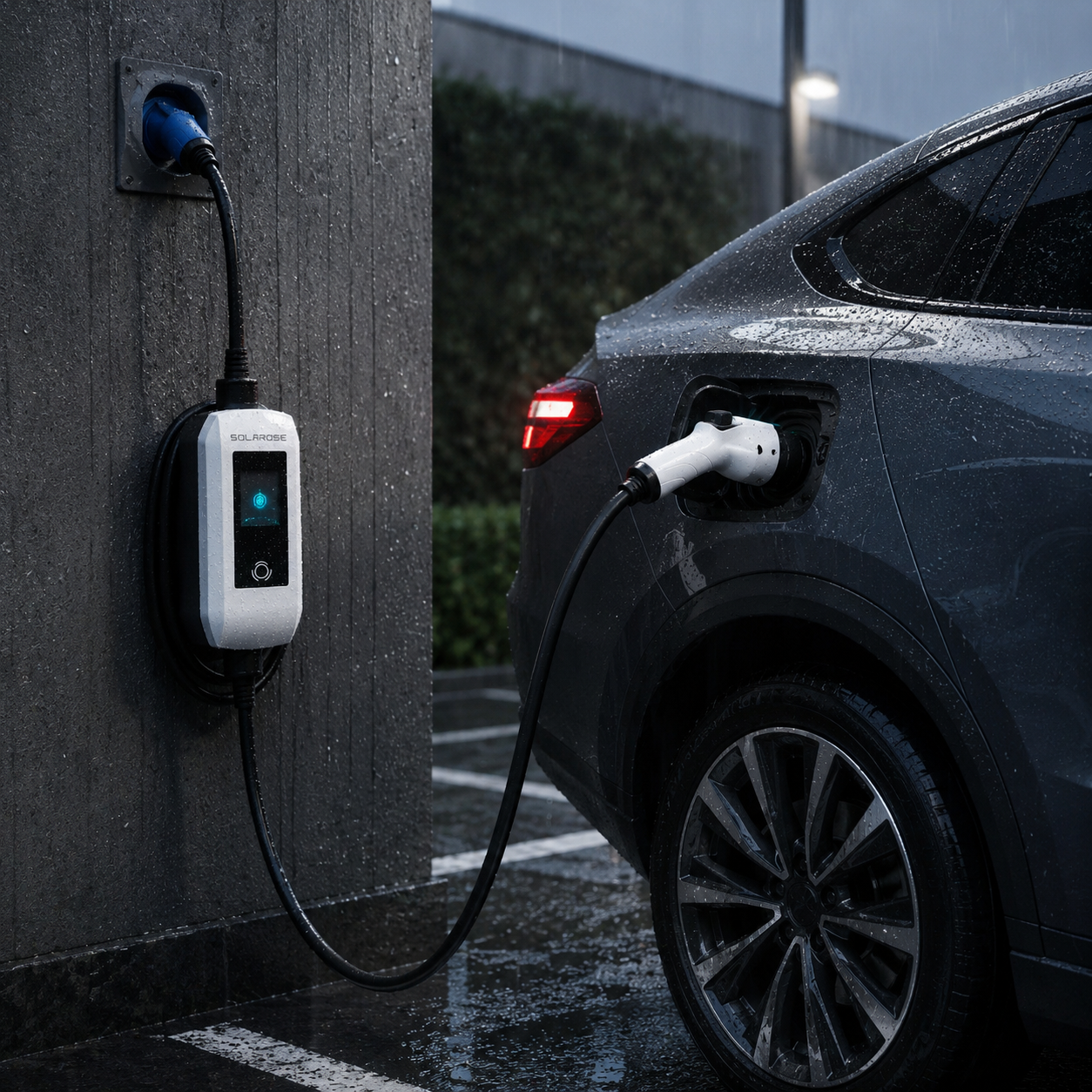

7KW Type 2 AC EV Charging Station for Commercial & Residential Deployment
Product Overview
The Z7C Series 7KW AC EV Charging Station is a compact and reliable charging solution designed for the European and Australian electric vehicle charging market. Developed for distributors, installers, OEM partners, and project contractors, this charging unit combines stable charging performance, industrial-grade protection, and flexible deployment capability for residential, commercial, and semi-public charging projects.
Supporting 220Vac ±15% single-phase power input with 32A rated current output, the charger delivers efficient 7KW charging performance compatible with major EV brands using the Type 2 charging standard. The unit features adjustable charging current settings (8A/10A/13A/16A/32A), allowing installers and operators to optimize power management based on local grid conditions and project requirements.
Built with IP67 protection, industrial-grade sealing, and reinforced cable durability, the charger is suitable for indoor and outdoor installations across Europe and Australia. The integrated RGB LED indicator and 2.8-inch OLED display provide clear operational status and user interaction, while multiple protection systems ensure long-term charging safety and operational reliability.
Designed for OEM/ODM cooperation and scalable project deployment, the Z7C Series supports bulk procurement, branding customization, and installer-focused integration.
Key Business Advantages
- 7KW AC charging solution optimized for Europe and Australia
- Type 2 connector compatible with mainstream EV models
- Adjustable charging current for flexible power management
- Industrial IP67 protection for outdoor deployment
- Compact wall-mounted structure for residential and commercial projects
- OLED display with RGB status indication for operational visibility
- One-button delayed charging function for scheduled charging control
- Reinforced industrial charging cable with durable sealing structure
- OEM/ODM branding and customization support available
- Suitable for installer networks, charging operators, and energy projects
Technical Specifications
| Category |
Specification |
| Product Model |
Z7C Series (7KW) |
| Rated Power |
7KW |
| Input / Output Voltage |
220Vac ±15% |
| Rated Current |
32A |
| Power Supply Type |
Single Phase |
| Charging Connector Type |
Type 2 |
| Charging Standard |
GB/T18487 |
| Reference Standards |
GB/T18487, GB/T20234, GB/T34657 |
| Charging Current Adjustment |
5-level adjustable (8A / 10A / 13A / 16A / 32A) |
| Charging Delay Function |
One-button delayed charging |
| Display Interface |
RGB LED Indicator + 2.8" OLED Display |
| Cable Specification |
3 × 6.0 mm² + 1 × 0.5 mm² (1 Phase 32A) |
| Connector Material |
Copper Silver-Plated Pins |
| Housing Material |
PC + PA66 + GF25% |
| Cable Material |
TPU |
| Mechanical Life |
>10,000 operations |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
5%–95% Non-condensing |
| Protection Rating |
IP67 |
| Pressure Resistance |
Up to 5000N Vehicle Pressure Resistance |
| Protection Functions |
Overvoltage Protection / Leakage Protection / Overtemperature Protection / Short Circuit Protection / Overcurrent Protection |
| Charger Dimensions |
281 × 100 × 66 mm |
| Cable Length |
5 meters |
| Packaging Size |
545 × 430 × 470 mm (4 units/carton) |
| Net Weight |
≤5KG (Single Unit) |
Compliance & Market Readiness
The Z7C Series EV Charger is engineered for international EV charging deployment requirements with a focus on operational stability, installation flexibility, and long-term safety performance.
The product architecture supports:
- European Type 2 charging infrastructure compatibility
- Residential and commercial AC charging deployment
- Outdoor installation environments with IP67 protection
- Grid-compatible adjustable current management
- Installer-friendly commissioning and maintenance
The charger is suitable for integration into:
- Residential charging infrastructure projects
- Commercial parking facilities
- Fleet charging deployment
- Property development EV charging systems
- Energy storage and solar-integrated charging solutions
OEM labeling, customized packaging, and regional branding support are available for distributors and project partners.
Commercial Applications
- Residential EV charging installations
- Commercial parking charging stations
- Apartment and property management projects
- Workplace EV charging deployment
- Solar + EV charging integrated systems
- Fleet vehicle charging management
- Automotive dealership charging support
- Smart energy infrastructure projects
Partnership & Supply Capability
We support long-term cooperation with:
- EV charger distributors
- Electrical installers
- Renewable energy integrators
- OEM/ODM partners
- EPC contractors
- Smart charging solution providers
Supply capabilities include:
- OEM/ODM manufacturing support
- Custom branding and packaging
- Bulk order production
- Technical documentation support
- Installer cooperation assistance
- Stable export supply for Europe and Australia markets
|
|
